Fetal Monitor

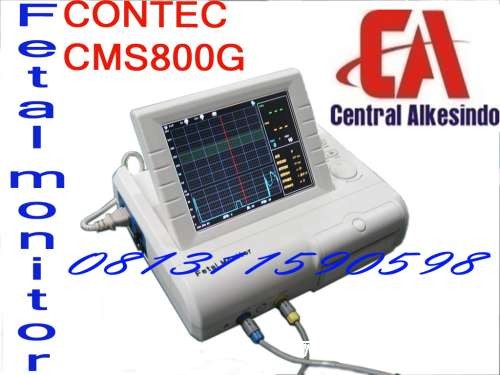

CMS 800G Fetal Monitor can provide different configurations according to different user requirements: FHR1 ( Ultrasonic Channel ` ) , FHR2 ( Ultrasonic Channel a) , TOCO, FMOV ( Fetal Movement Marker) . Monitoring results can be recorded by built-in recorder for continuous or  intermittent records.

The monitor can be used individually or connected with PC through RJ45 Interface for the purpose of central monitoring.
  Compact and portable design, can be put on table or wall mounted

  8.4 " color LCD screen display which can be rotatable up to 60°

  Display of the patient data and curve clearly

  Can record fetal movement manually

  High and low fetal heart rate alarm function

  Continuous 24-hour real-time monitoring

  Continuous 12-hour patient curve and data storage with playback ability

  With picture freeze function

  Chinese and English operation interface selectable

  Single, Twins Monitoring selectable

  9 chip pulse width beam probe

  Extra-long life, high-resolution built-in thermal printer which can output waveform, text, and
other information

  Built-in RJ45 communication interface, can be connected with central monitoring system

Specification:

Ultrasound probe nominal frequency: 1.0MHz
FHR Range 65BPM^ 210BPM Accuracy: ± 2
AC power supply voltage AC100V^ 240V  Working Frequency: 50Hz/ 60Hz
TOCO Range: 0^ 100  Resolution: 1 Fetal marking: Manual push button Operated by pregnant women

Optional: Twins monitoring ultrasound probe FH
